Dragonfly Mini

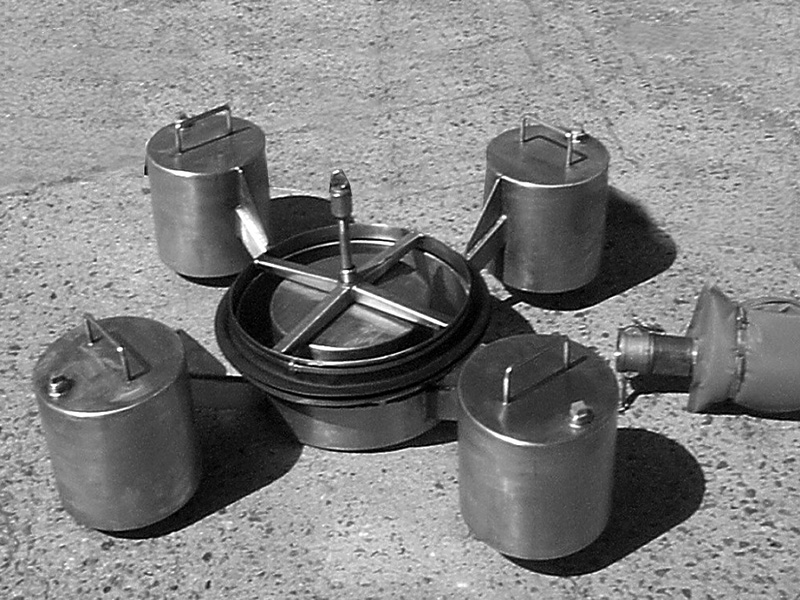

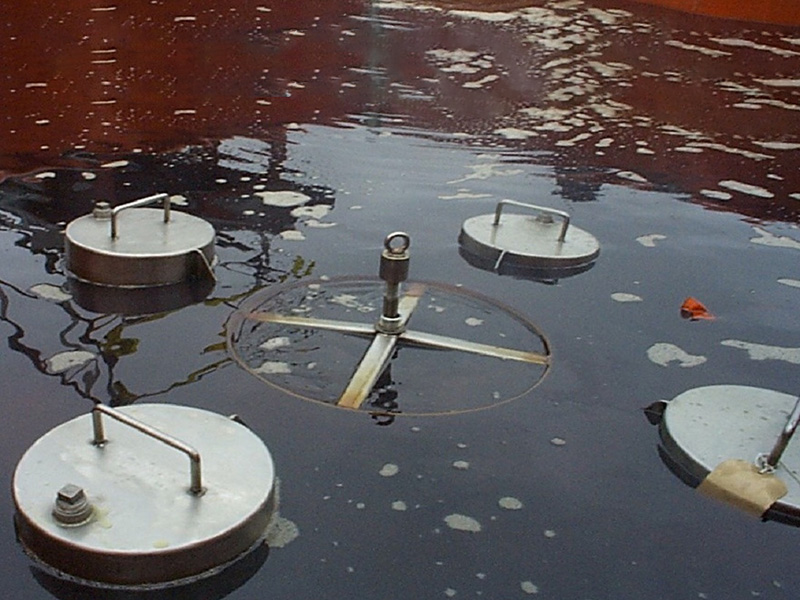

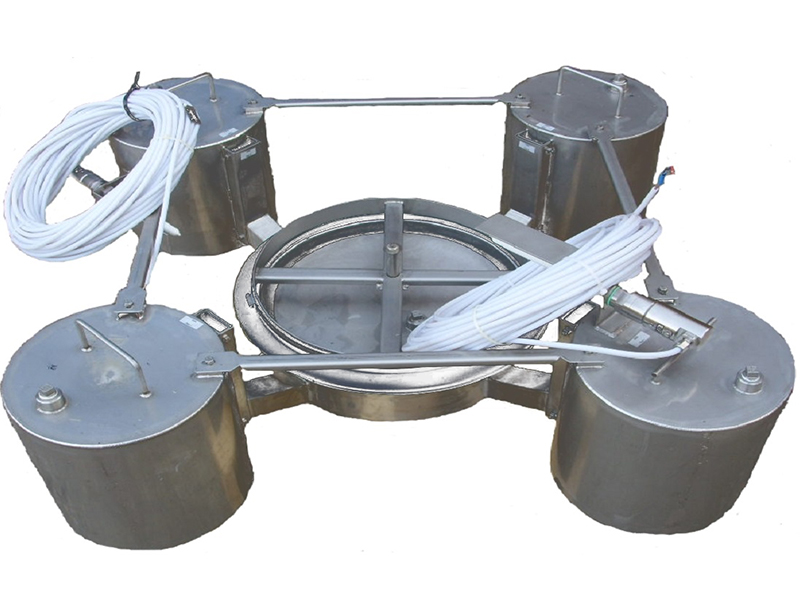

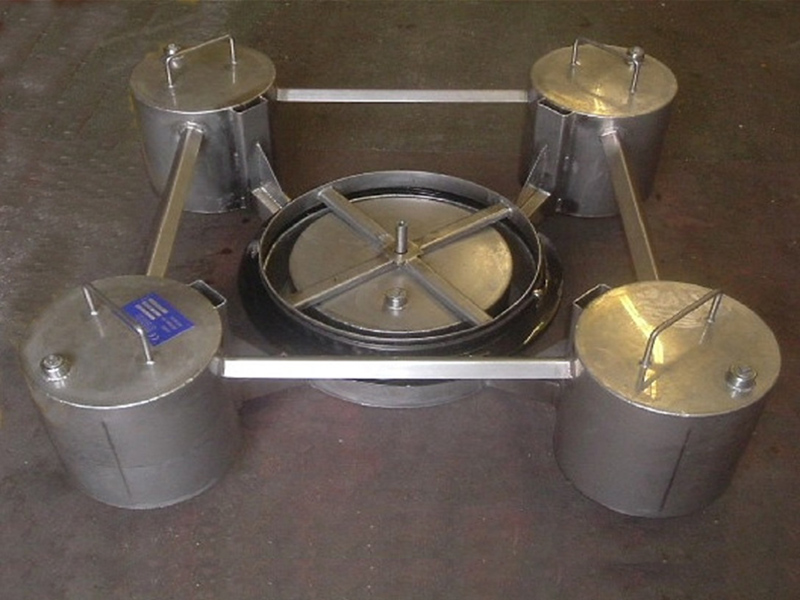

The Dragonfly Mini is a floating weir skimmer, designed primarily for the recovery of a range of floating pollutants and can be used in both open environments and closed tank applications.

  • Skimmer capacity is rated at up to 15m³/hr (continuous)
  • Manufactured in 316 stainless steel (Also available in other materials).
  • Four buoyancy chambers can be ballasted to match the specific gravity of the fluid within the tank
  • Skimmer is light weight and compact for ease of installation
  • Can be used in sour water and slop tanks

Skimmer Dimensions:

  • Length:122cm
  • Width: 122cm
  • Draft: 22cm
  • Weight: 48kg
  • Recovery Rate: up to 15m³/hr
  • Recovery capacities stated are indicative and full system recovery capacities will depend on specification of the pump and other ancillary equipment connected
